Motion

Add motion to a deck.

Rayslides supports three motion types. Each type changes a different part of the presentation.

Choose the motion type

RevealShow content inside one slide.

TransitionMove between two logical slides.

MorphChange named objects inside one slide.

Use one type or combine them. Reveals run before morph states. A transition runs at the slide boundary.

Reveal items

Place @anim(...) before the item that must appear later.

@anim(fade) by=bullet duration=0.25
@box x=140 y=250 w=900 h=500
- First point
- Second point
- Third point

The forward controls reveal the next step. The backward controls hide the current step.

Initial viewFirst pointSecond pointThird point

After one stepFirst pointSecond pointThird point

Final viewFirst pointSecond pointThird point

One logical slide contains all three views. Rayslides does not create extra PDF pages.

Grouping	Result
`by=item`	Rayslides reveals the complete object.
`by=line`	Rayslides reveals each non-empty source line.
`by=bullet`	Rayslides reveals each bullet line. Other lines stay visible.

Effects include appear, fade, and four slide directions.

Add after=0.8 to start a step after the previous motion ends.

Timing key	Result
`after=0.8`	Each later step starts 0.8 seconds after the previous motion ends. Without it, every step waits for a click.
`delay=0.5`	The first step starts 0.5 seconds after the slide settles. Alone, it makes only the first step automatic.
`delay=click`	The first step waits for a click. Later steps follow `after=` automatically.
`ease=spring`	Use `linear`, `smooth` (default), or `spring` for the reveal.
`order=1`	Sort this build later than builds with a lower order. Ties keep source order.
`anim=none`	No reveal. On a `@pop` it cancels a reveal inherited from the `@push`.

@anim(slide-left) by=bullet delay=0.5 after=0.8 duration=0.25 ease=spring
@box x=140 y=250 w=900 h=500
- Appears half a second after the slide settles
- Then this one 0.8 seconds later

@anim accepts only its documented keys. An unknown key such as name= is a parser error.

Move between slides

Set a transition on a slide or a slide template.

@pushslide content transition=slide-left duration=0.35

@popslide content transition=fade duration=0.5

The transition moves the old and new slides together. Backward navigation reverses the direction.

Use transition=none to disable the inherited transition for one slide. Add ease=linear|smooth|spring on the same line to choose the transition curve.

Set a deck-wide default once in the preamble. A slide or template that sets its own transition= keeps that value.

@transition=fade
@transition_duration=0.35
@transition_ease=smooth

Change one slide with morph states

A morph state changes named objects. Give each target a stable id=.

Then add a state and set only the values that must change.

@box id=photo img=assets/photo.png x=1210 y=250 w=610 h=347

@state(morph) label=TAKEOVER duration=0.8 ease=spring
@set photo x=0 y=0 w=1920 h=1080

BASEThe photo is a thumbnail.

TAKEOVERThe same photo fills the slide.

FLOWThe same objects form a diagram.

Each state is a cumulative patch. Values carry forward when a state does not set them.

Use state directives

Directive	Use
`@set name ...`	Change one or more values.
`@hide name ...`	Hide an object. You can also move or style it.
`@show name ...`	Show a hidden object. You can also change it.
`@box` inside a state	Create an object in that state.

Values that interpolate

Rayslides interpolates geometry, font size, colors, opacity, media focus, corner radius, line geometry/stroke, text shadows, and rotation. Rotation follows the shortest arc, so 350 to 10 turns 20° instead of unwinding a full circle.

Changed text and changed images use a cross-fade. New and removed objects also use a cross-fade.

Edit morph states in Studio

Select a named object and a semantic state in the same source-backed workspace.

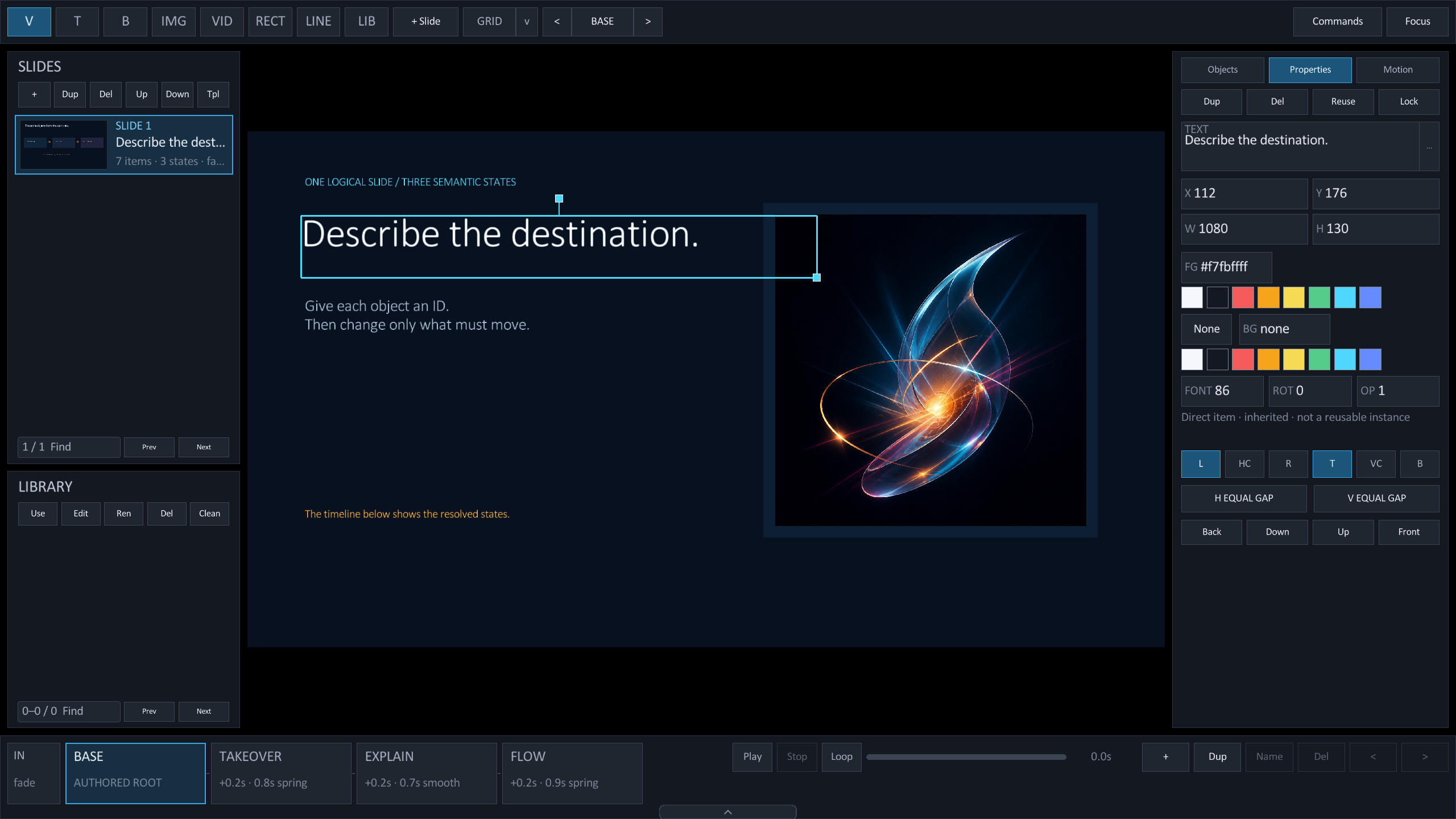

Studio editing a morph deck with a selected title, exact Properties, and Base, Takeover, Explain, and Flow cards visible — **The canvas shows the resolved state while Properties keeps exact values editable.** The slide thumbnail and timeline remain tied to the same `.sld` source.

The bottom timeline shows the incoming transition chip, the base scene, one BUILD card per reveal, and each resolved state.

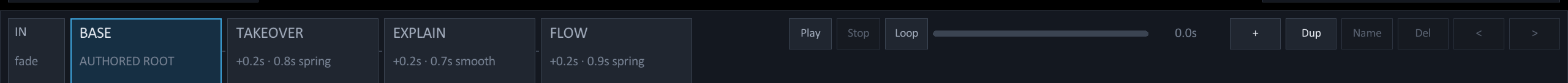

Morph timeline with Base, Takeover, Explain, and Flow cards plus six state controls — **The timeline keeps every control readable.** The selected card has a cyan border.

Control	Action
IN	Open the Transition section for this slide's incoming transition.
BASE	Show the fully revealed authored scene.
BUILD card	Show the slide through that reveal's last step and select its object. A step chip narrows to one step.
+	Append a cumulative morph state and open Motion for its timing.
Dup	Insert a new state from the selected snapshot.
Name	Give the selected state a source-backed label.
Del	Delete the complete selected state block.
< · >	Move the selected state, or the selected BUILD, earlier or later.
Play · Stop · Loop	Preview the slide from the selected scene. Wider windows add a scrubber and a time readout.

Edit one state

FLOW selected #step_three

Properties X 1280Y 390 W 420H 220 MORPH STATE · writes @set

Select a state, then select an object. A geometry or style change writes a state-local @set.

Select a state card.
Studio shows the objects after that state and every earlier state.
Select an object.
The cyan outline identifies the object that will change.
Move it or change a property.
Studio writes only the values that differ.
Use [ and ].
These keys cycle BASE, each build, and each state.

Read the state values

A card shows the delay, duration, and easing from its @state(morph) line.

@state(morph) label=flow after=0.2 duration=0.9 ease=spring

after delays the state after the previous motion.
duration sets the motion time in seconds.
ease sets the interpolation curve.
The source order sets the playback order.

Edit these values in the .sld source or in the Motion tab's State section. Studio reports them on the cards.

The BASE card is the authored root. You cannot rename, remove, or move it.

Author motion in Studio

The Motion tab sits beside Objects and Properties. It writes the same @anim, @state(morph), and transition keys shown above, and every change is one undo step.

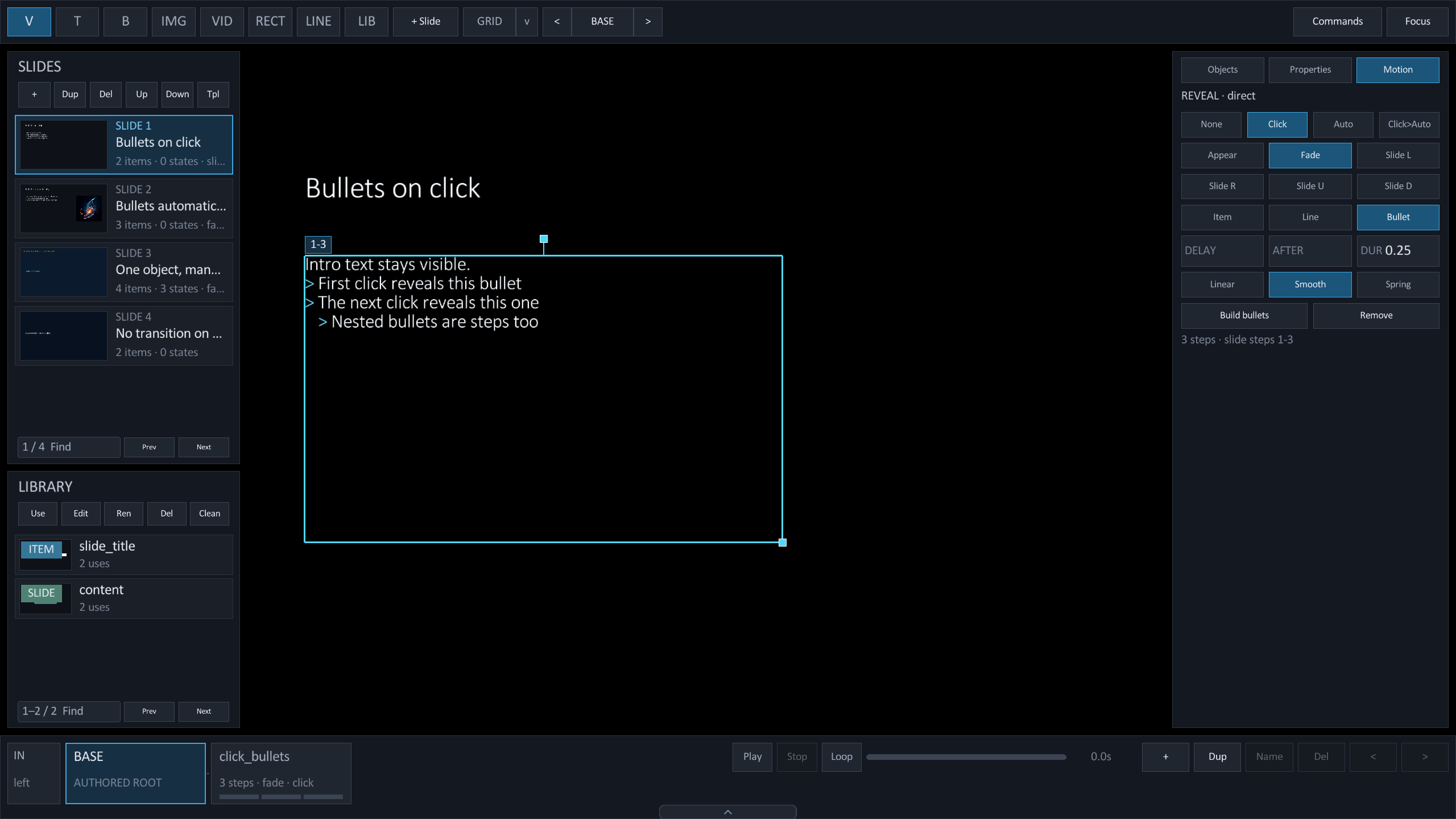

Studio with a bullet box selected and the Motion tab showing the Reveal section with trigger, effect, grouping, delay, and easing controls — **The Reveal section edits the selected object's build.** Studio writes only the keys that differ from the defaults.

Build bullets

Select a text box.
Open the Motion tab or choose Show Motion in Commands.
Choose Build bullets.
Studio writes @anim(fade) by=bullet before the box.
Choose a trigger.
Click waits for a click at every step. Auto starts after DELAY and continues after AFTER. Click>Auto waits once, then continues automatically.
Refine it.
Pick an effect, a grouping, a duration, and an easing. Remove deletes the reveal.

Section	Appears when	Edits
Reveal	An object is selected in BASE or a build scene.	Trigger, effect, By item/line/bullet, DELAY, AFTER, DUR, easing, Build bullets, Remove.
State	A STATE card is active.	LABEL, AFTER, DUR, Click/Auto, easing, Reset, Exit L/R/U/D, and the list of changes in this state.
Transition	Nothing is selected in BASE, or the IN chip is clicked.	Inherit/None/effect, DUR, easing, Use for deck, Clear deck.

The Transition section reports where the value comes from: this slide, a template, or the deck default. Use for deck writes the @transition*= preamble lines. On a template-backed slide, hold Alt to change the template instead of the instance.

Read the timeline

Every object with a reveal shows a numbered badge on the canvas and a BUILD card in the timeline.

Studio timeline with the IN chip, BASE, a BUILD card expanded into step chips, and STATE cards — **A BUILD card shows the slide through its last step.** Use < and > to move a build earlier or later without changing paint order.

See where objects come from

With a state selected, Studio draws a dashed ghost at each changed object's previous position and a path to its new center. Objects born, hidden, or shown in the state carry NEW, EXIT, or SHOW chips.

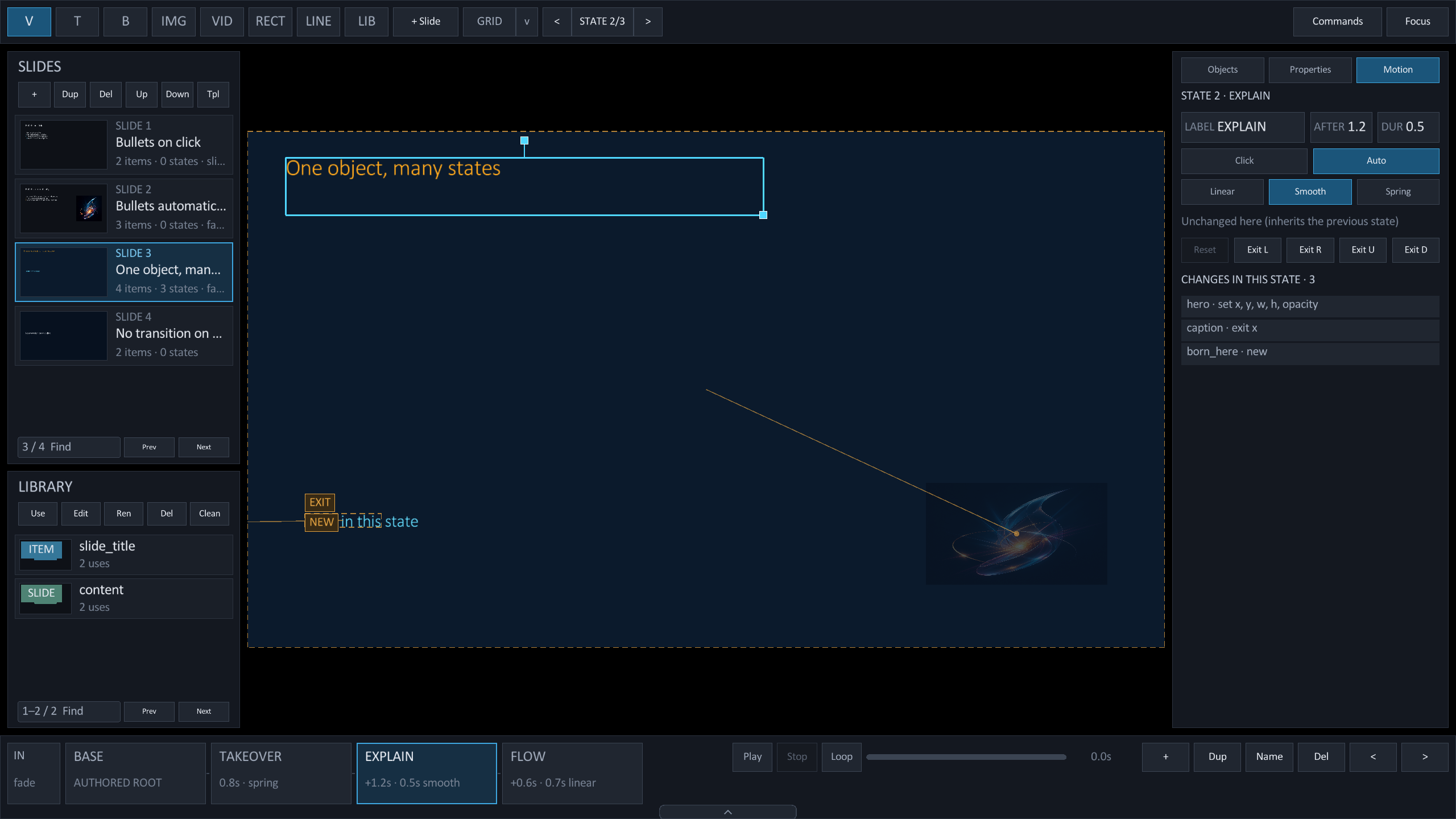

Studio in a morph state with dashed ghosts, motion paths, and NEW and EXIT chips over the changed objects — **Ghosts are editor chrome.** They never appear in the presentation or the PDF. Use **Toggle motion ghosts** in Commands to hide them.

With an object selected in a state, Reset removes every change to it in that state. Exit L/R/U/D hides it just beyond the chosen slide edge.

Preview the timing

Press Shift + Space or click Play in the timeline. Studio plays the real reveal, morph, and transition timing on the canvas from the selected scene.

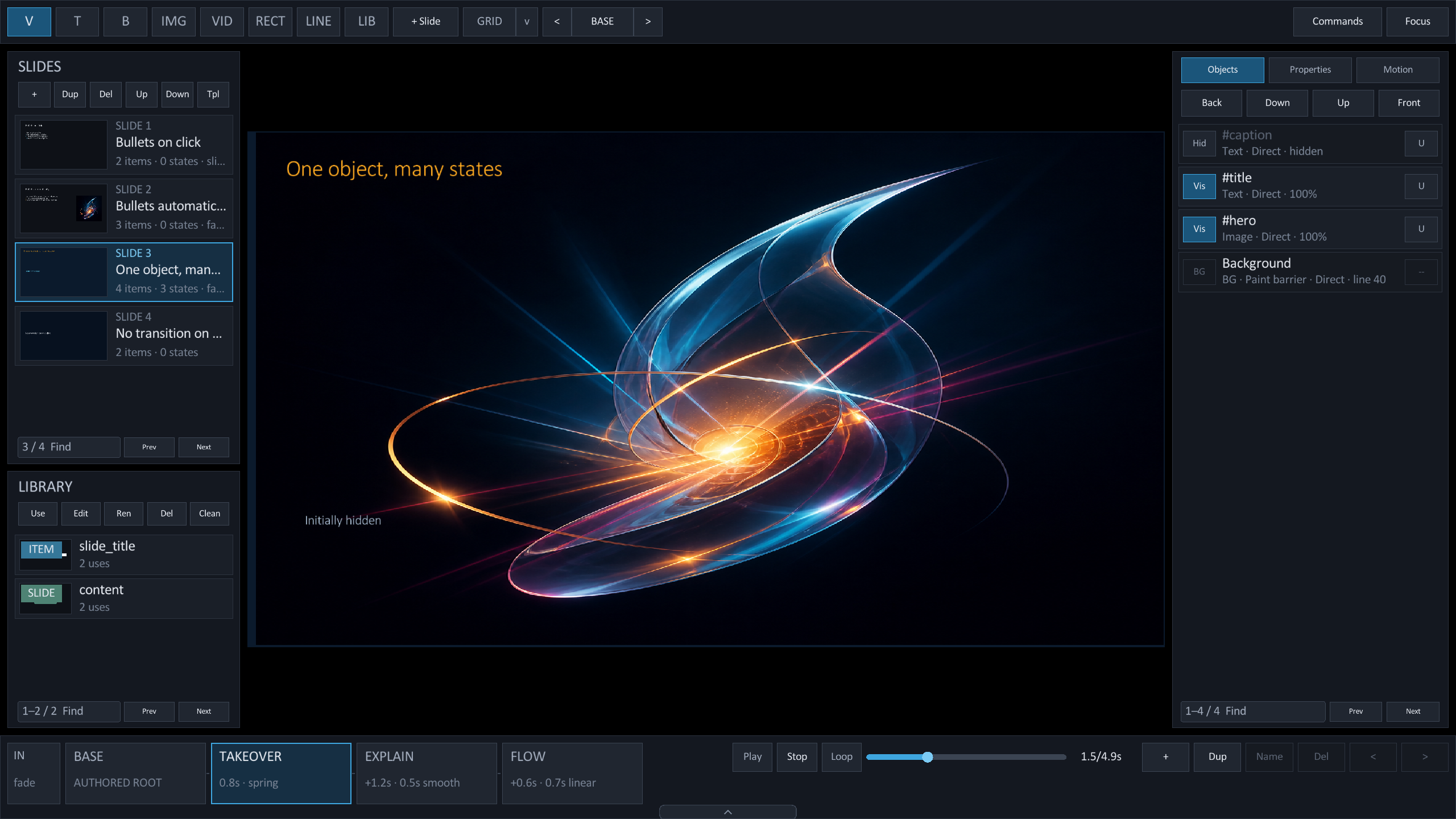

Studio mid-preview with the Pause, Stop, and Loop transport, a scrubber, and a time readout in the timeline — **The scrubber moves in both directions.** Click-gated steps use a fixed 0.75-second gap so the whole slide plays through.

The preview pauses on the last frame. Stop or Esc returns to the selected scene.
Loop restarts the preview until you stop it.
Any source edit, undo, scene change, tool change, or canvas drag stops the preview.
Videos stay on their poster during a preview.

See a rendered state

This showcase state moves and restyles the same named objects into a two-way relationship.

A clean presentation render connecting Edit visually and Diff as text with a two-way arrow — **The source sets IDs and destination values.** Rayslides interpolates the geometry and renders the state without a second animation format.

Export animated slides

A PDF contains one page for each logical slide. Rayslides renders the final reveal and morph state.

A transition does not add a PDF page.
